Tripod Security Gates
Intelligent Access Control Stainless Steel Fingerprint, QR Code, Barcode Scanner, RFID Card, Tripod Turnstiles and Gates
- Product Introduction
Product Details

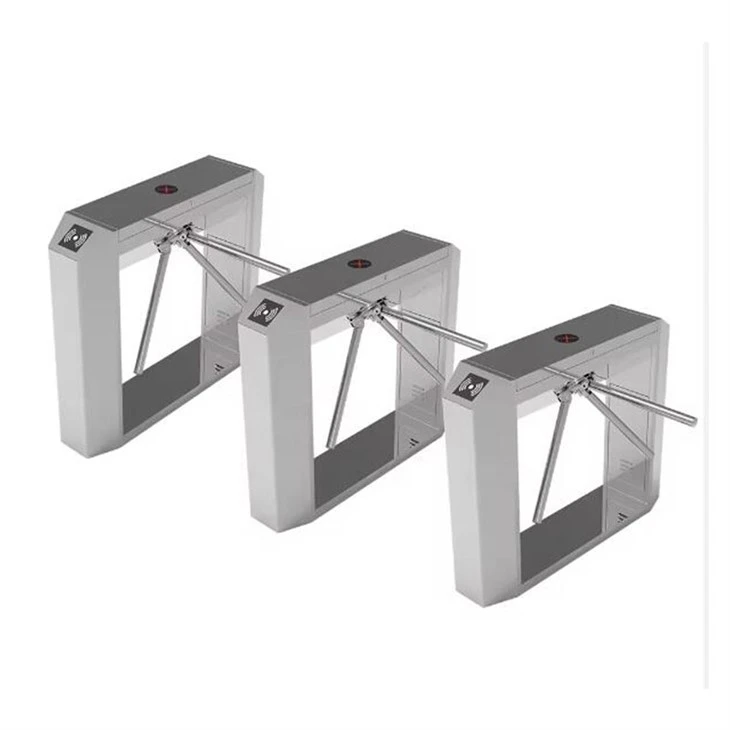

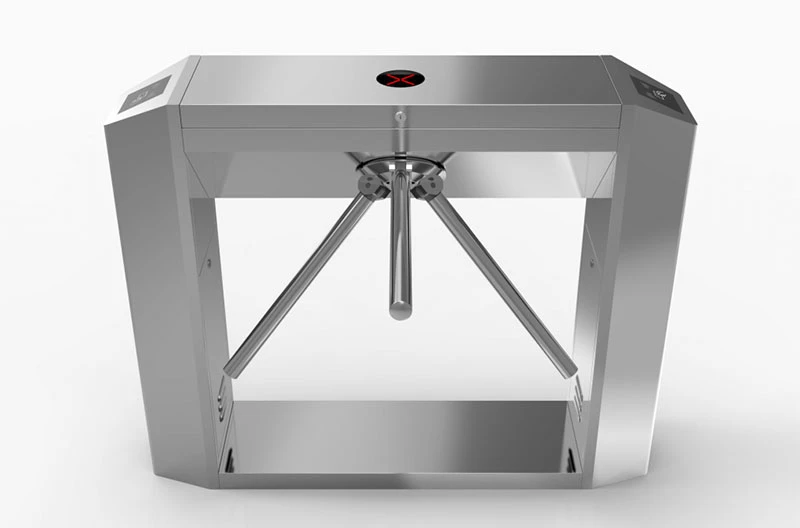

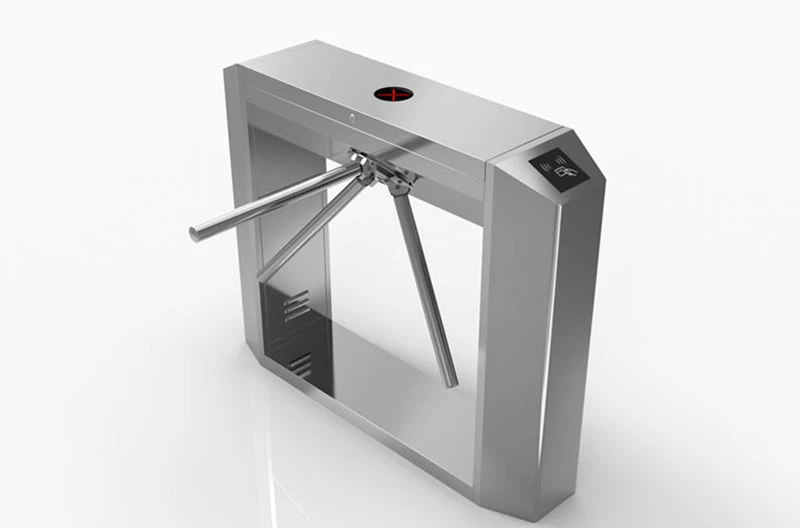

This turnstile features a basic three-roller design that allows for smooth and effective access control through simple operation, while preventing unauthorized entry and exit. The device is well-engineered and features rust resistance, durability, and resistance to external impacts.
Depending on the drive mechanism, smart three-roller turnstiles can be classified as fully automatic or semi-automatic. The difference between the two is that fully automatic models rely entirely on electric power for operation: in the event of a power outage, the barriers automatically lower, and they automatically rise once power is restored.
Product Parameters
Lead Time: According to quantity and seasons, the lead time is different.
|
Access Width |
≤600mm(customization available) |
|
Material |
SUS304 |
|
Power supply |
AC 220V/110V±10% 50HZ/60HZ |
|
Input |
12V |
|
Working Term |
﹣30℃-60℃ |
|
Working Humility |
5%-90% |
|
Direction |
Two-way |
|
Flow rate |
35-60 passages/minute |
|
Direction Indicator |
Yes |
|
Alarm |
sound and light when unauthorized entry |
|
Forced open |
locked dead |
|
Auto lock |
5 seconds |
|
Working noise |
＜65 decibels |
|
Respond Time |
1-2S |
Product Details
1. Features a unique non-full-tooth gear transmission mechanism, ensuring more precise and reliable locking and unlocking of the turnstile when it is in the zero position.
2. Runs smoothly with low noise and no mechanical impact.
3. Includes a power-on self-test function; after power is applied, the turnstile automatically enters the locked state.
4. The control panel menu supports multiple operating mode settings, such as: two-way card access; one-way card access with restricted access in the opposite direction; and one-way card access with free passage in the opposite direction.
5. In the event of a power outage, the turnstile arm will automatically lower; once power is restored, the arm must be raised manually (instructions: first press the arm lightly, then lift it manually).
6. Equipped with an RS485 interface, it allows for remote control of the barrier's raising and lowering to meet special needs or fire safety control requirements.
7. Provides standard electrical interfaces for easy connection to various reader/writer devices for system integration, and also supports remote control and management via a computer.
8. Automatically counts the number of people passing through and displays the count directly on an LED display (the LED display is an optional feature).
9. LED indicators show the direction of passage, clearly informing pedestrians of the currently permitted direction of travel.
